PERMANENT MAGNET GENERATOR AND MOTOR
풍력, 수소력, 해양에너지에 최적화된 고효율의 영구자석형 발전기와 전동기를 제공합니다. 고객의 제품에 최적화된 소형에서 중대형 발전기와 전동기의 설계, 제작 및 엔지니어링의 기술 솔루션을 제공하고자 합니다.
발전기

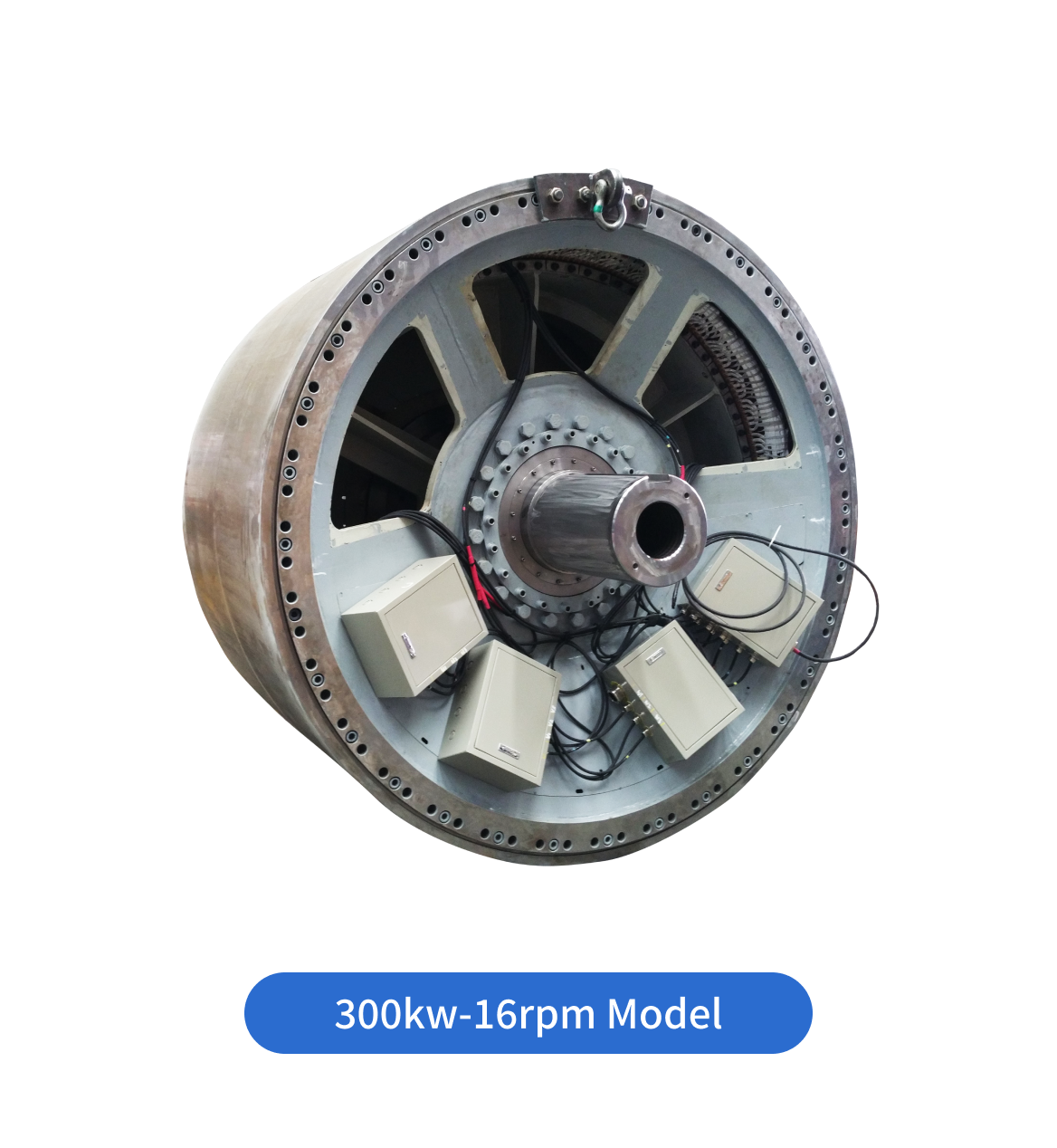

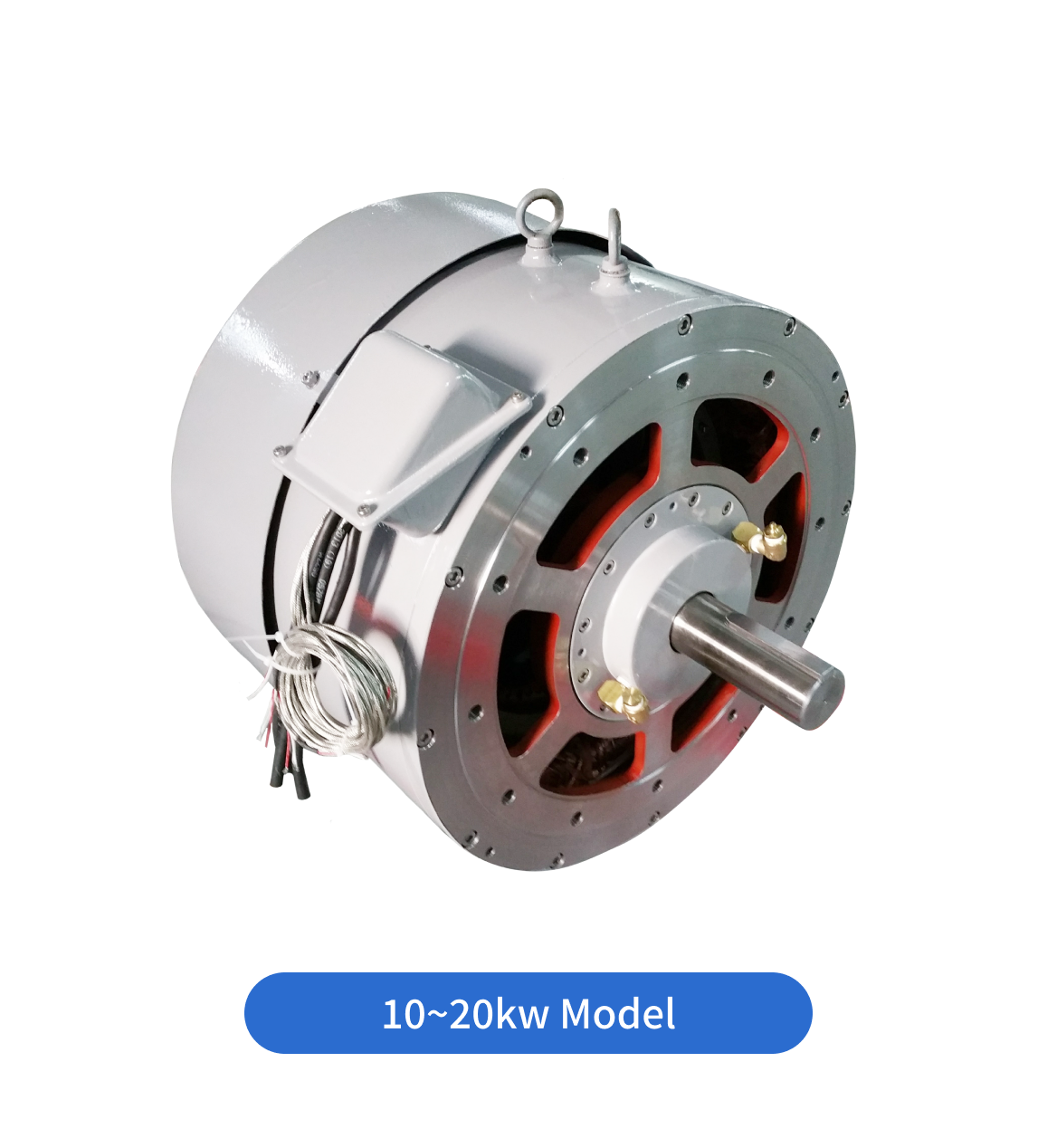

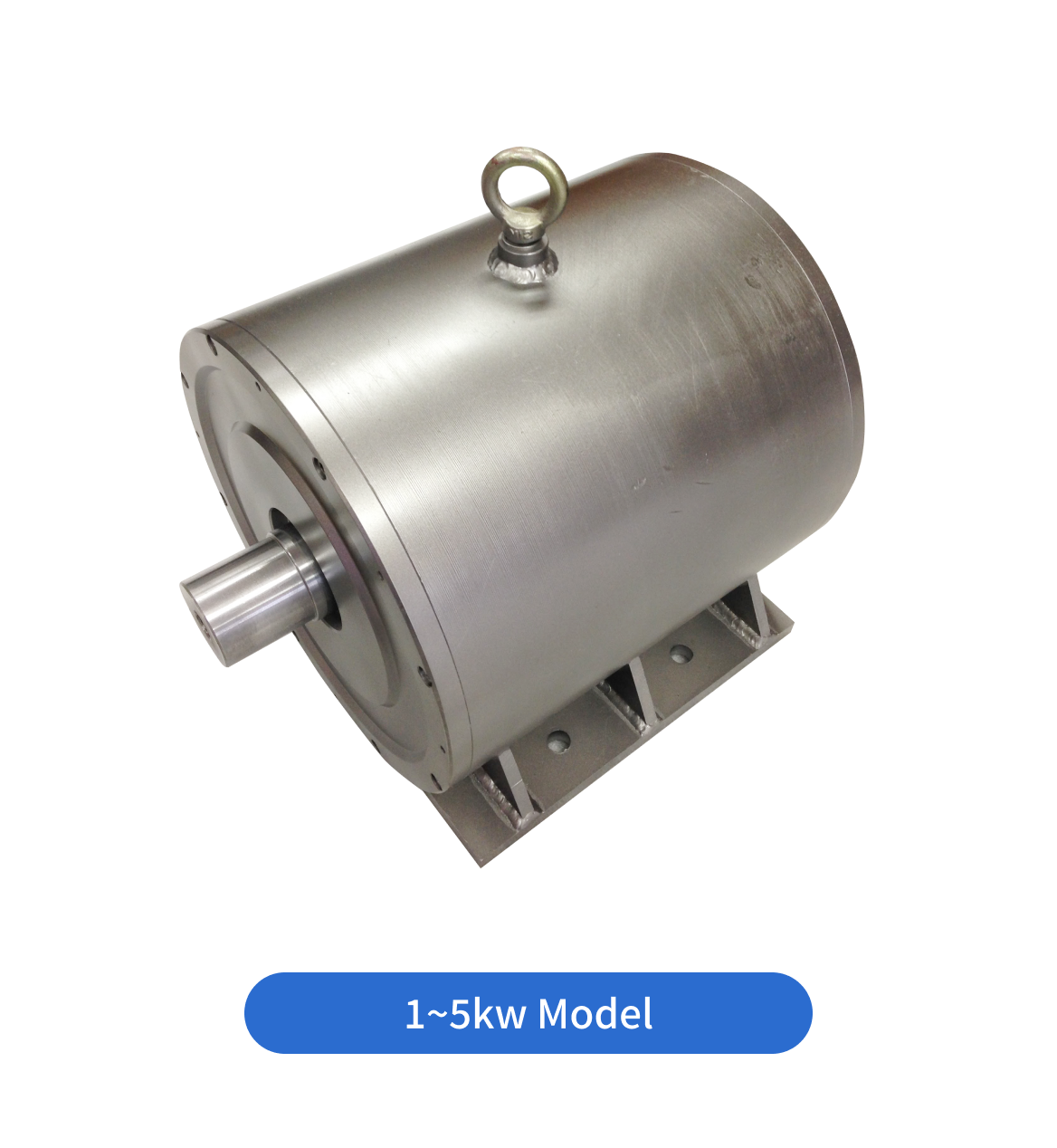

PERMANENT MAGNET GENERATOR
PERMANENT MAGNET GENERATOR
ELECTRICAL SPECIFICATION
| Model name | GRM-G Series |
| Rated Output Power (W) | 1kW ~300kW |
| Gen. Load Voltage (3Phase AC) | 380V(주문자사양) |
| Rotor | PM Type |
| Stator | Core Type |
| Rated speed (rpm) | 16rpm~ 1800rpm |
| Efficiency (%) | 92% |
MECHANICAL SPECIFICATION
| Model name | GRM-G Series |
| Housing Material | AL6061 |
| Shaft Material | S45C |
| Shaft Bearing | Ball bearing |
전동기

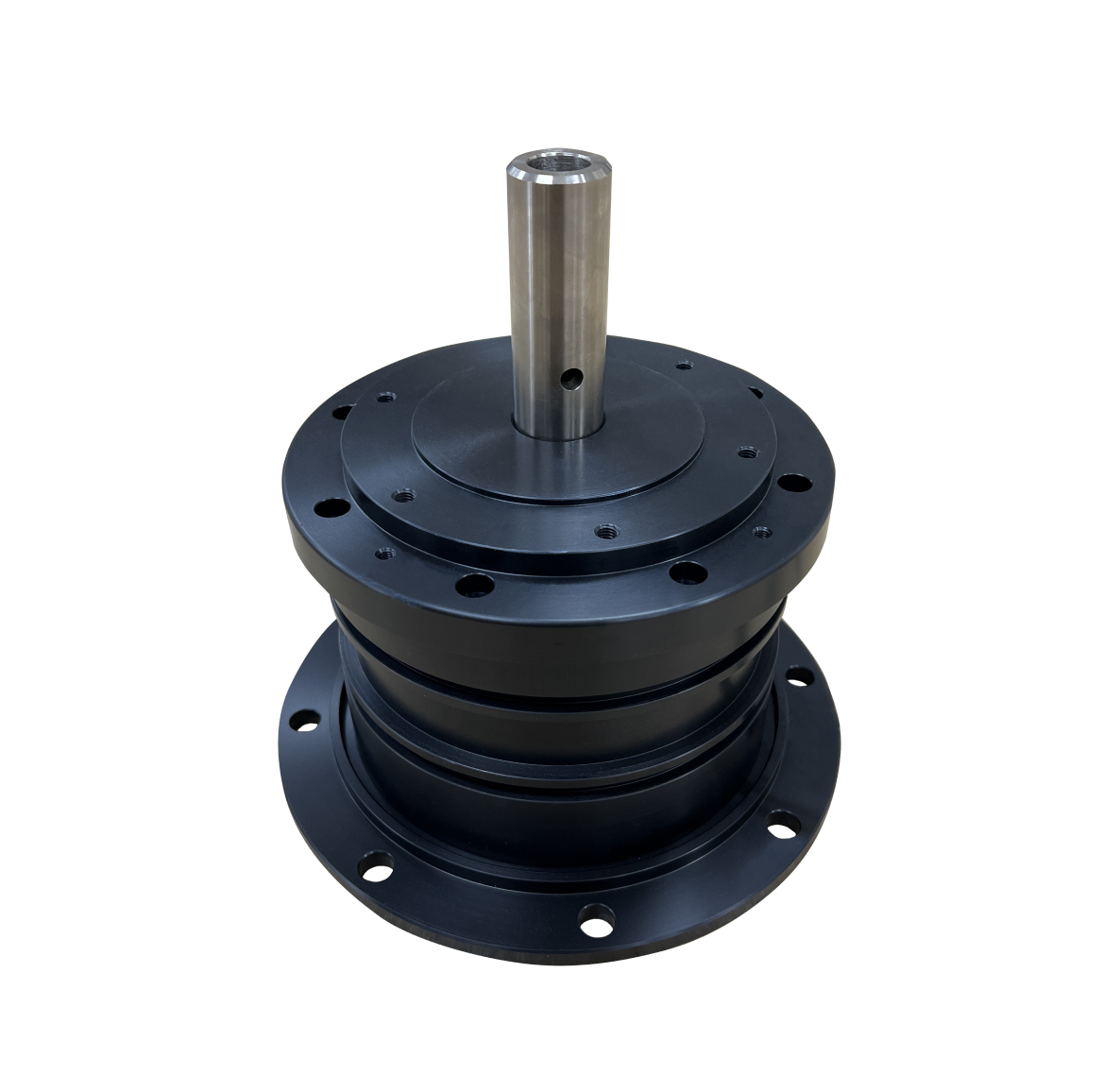

PERMANENT MAGNET MOTOR
PERMANENT MAGNET MOTOR
ELECTRICAL SPECIFICATION
| Model name | GRM-G Series |
| Rated Output Power (W) | 10kW |
| Gen. Load Voltage (3Phase AC) | 87V |
| Rotor | PM Type |
| Stator | Core Type |
| Rated speed (rpm) | 4500rpm |
| Rated Torque(N.m) | 20.8 N.m |
| Current (A) | 104.9A |
| Efficiency (%) | >90.9% |
MECHANICAL SPECIFICATION
| Model name | GRM-G Series |
| Housing Material | AL6061 |
| Shaft Material | S45C |
| Shaft Bearing | Ball bearing |
